Model No: VTEQ series
Compact Module Electric Actuator
Torque range: 50~3000N.m direct connection; Gear box for more than 3000 to 8000N.m
Protection level: IP67, IP68 is optional
Applicable voltage: AC110V,AC220V±10% 1 Phase; 50/60Hz±5%, optional DC 24V, AC 380V
Ambient temperature: -25℃~+70℃
VTEQ series products are a new generation of electric actuator products. Modular design, with rich and extensible functions. Suitable for butterfly valve, ball valve, gate valve and other different forms of valves.
Protection level: IP67, IP68 is optional
Applicable voltage: AC110V,AC220V±10% 1 Phase; 50/60Hz±5%, optional DC 24V, AC 380V
Ambient temperature: -25℃~+70℃
VTEQ series products are a new generation of electric actuator products. Modular design, with rich and extensible functions. Suitable for butterfly valve, ball valve, gate valve and other different forms of valves.
Quantity :
VTEQ Series Electric Actuator Has the Following Advantages:
1. Compact structure, convenient installation in small space, wide range of adaptive valve types
2. Efficient transmission design, with structural self-locking
3. Double anti-condensation design, lower probability of electrical failure
4. Modular design, easy operation for production and maintenance
5. High protection level, IP67 factory standard, IP68optional
6. High explosion-proof rating, up to Exd ll CT6
7. Independent electronic control unit design, strong presequence protection circuit for product safety and stability escort
8. High control accuracy, up to 1%
2. Efficient transmission design, with structural self-locking
3. Double anti-condensation design, lower probability of electrical failure
4. Modular design, easy operation for production and maintenance
5. High protection level, IP67 factory standard, IP68optional
6. High explosion-proof rating, up to Exd ll CT6
7. Independent electronic control unit design, strong presequence protection circuit for product safety and stability escort
8. High control accuracy, up to 1%
VTEQ Series Electric Actuator Technical parameters
Torque range: 50~3000N.m direct connection; Gear box for more than 3000 to 8000N.m
Protection level: IP67, IP68 is optional
Applicable voltage: AC110V,AC220V±10% 1 Phase; 50/60Hz±5%, optional DC 24V, AC 380V
Ambient temperature: -25℃~+70℃
Protection level: IP67, IP68 is optional
Applicable voltage: AC110V,AC220V±10% 1 Phase; 50/60Hz±5%, optional DC 24V, AC 380V
Ambient temperature: -25℃~+70℃

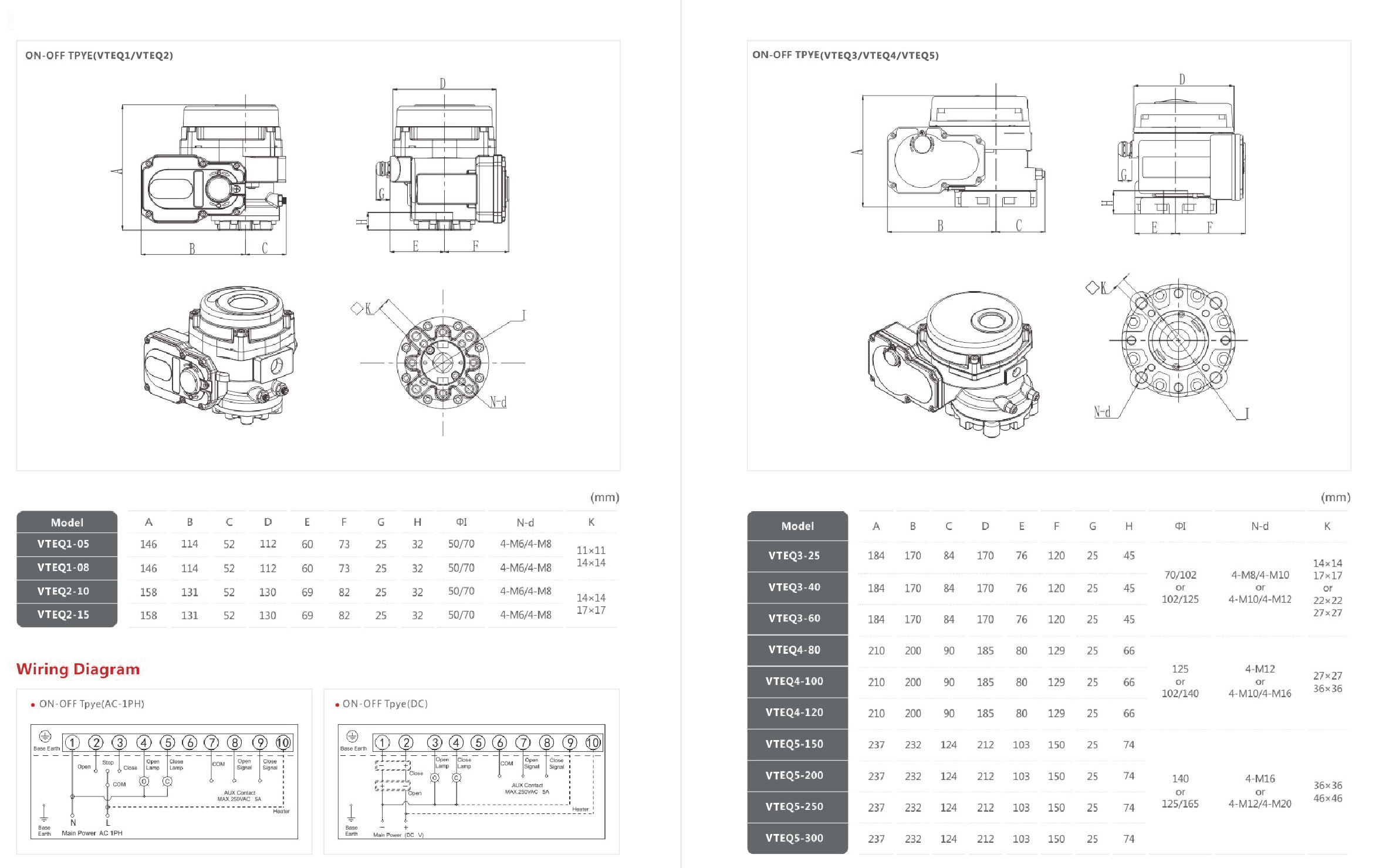

Dimension Diagram of Switch-type Model

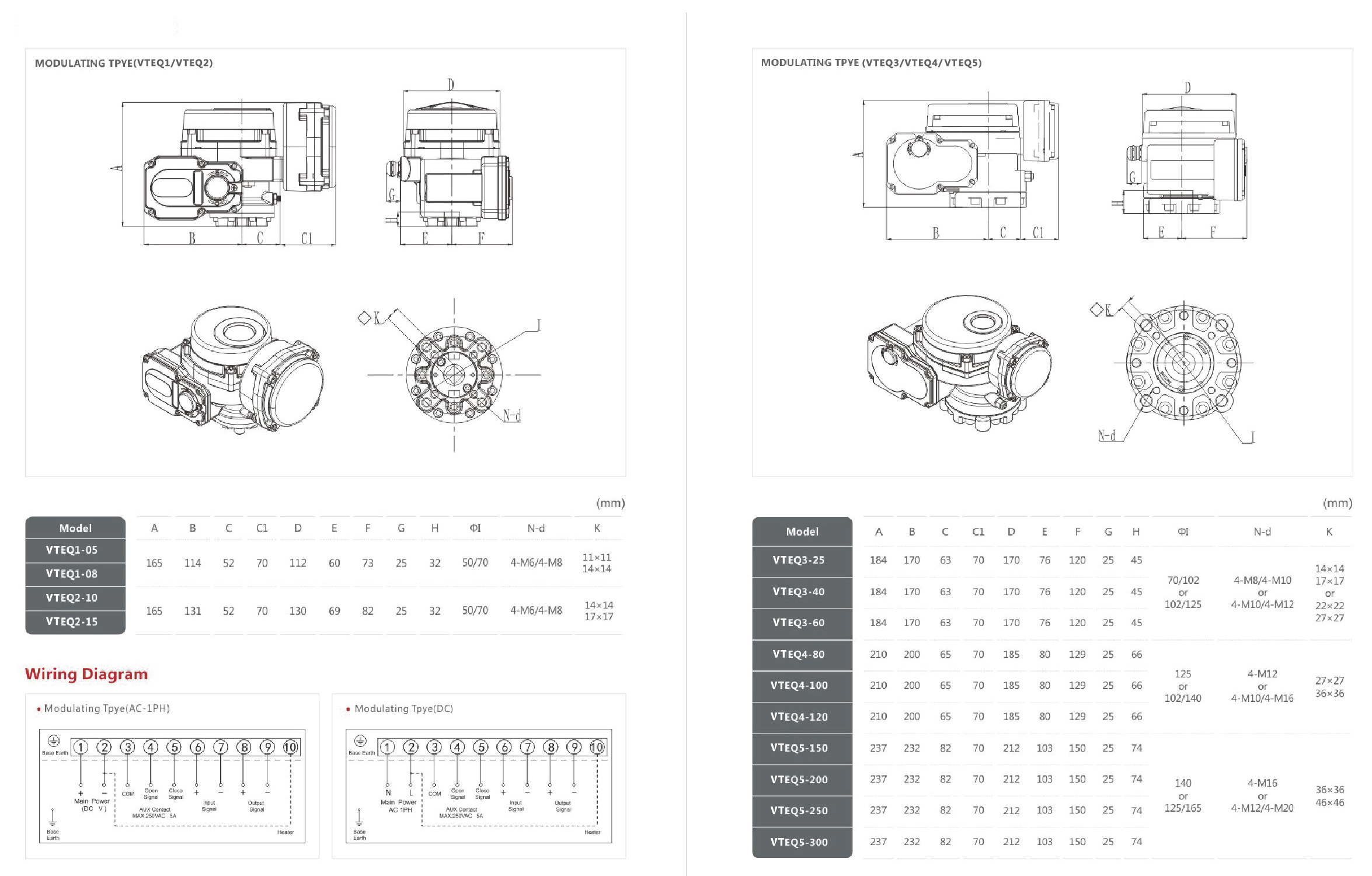

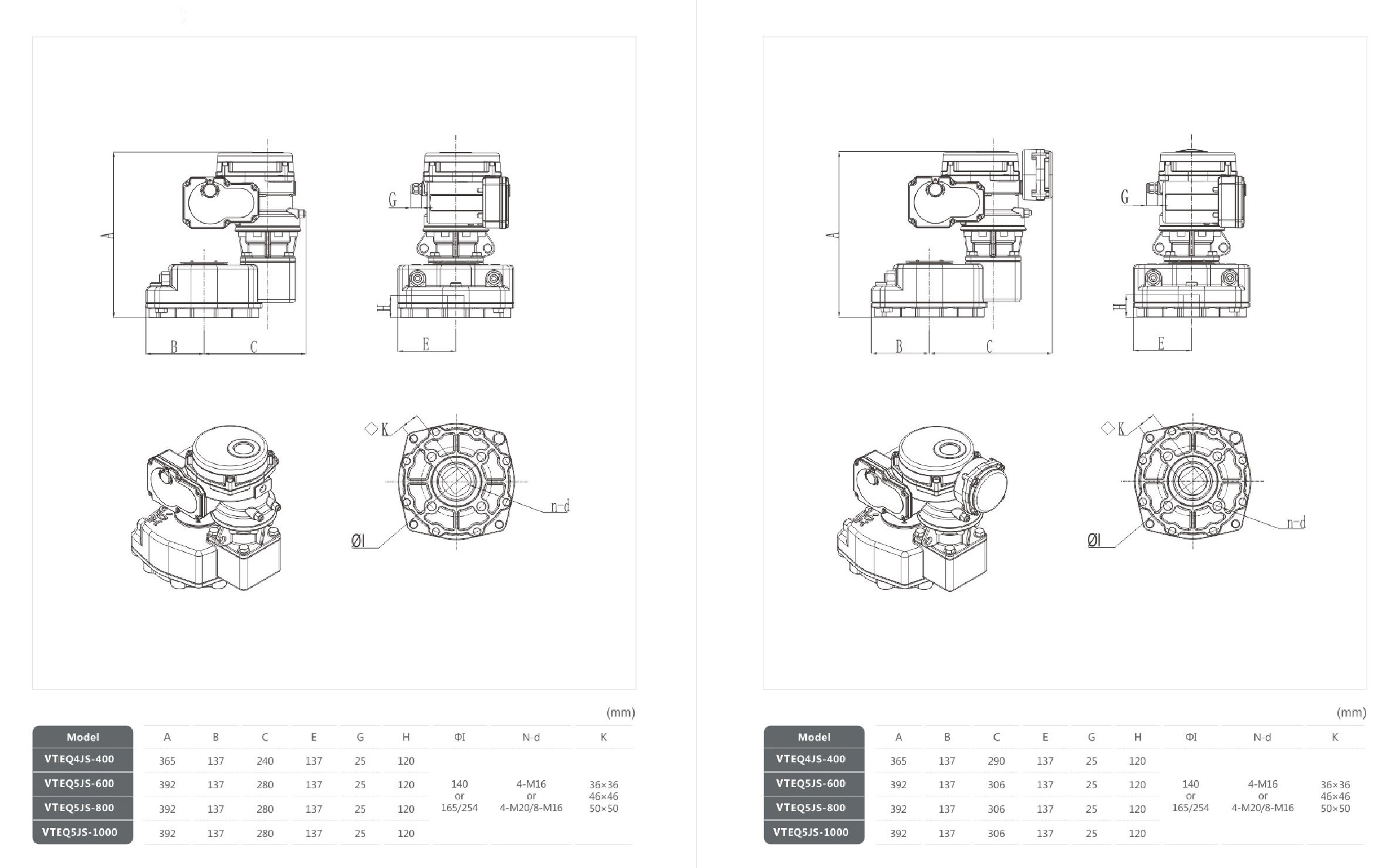

Dimension Drawing of Regulating Type
