Model No: VTIK3
Intelligent Electric Actuator
The new-generation VTIK3 intelligent electric actuator serves as an automated drive device for linear-stroke valves, supporting valve opening, closing and modulation. Featuring compact size, light weight and easy operation, it enables non-intrusive configuration via infrared and displays operating status clearly on the LCD screen. Equipped with self-protection and explosion-proof functions, it is applicable to a wide range of industries. For 90° quarter-turn valves such as ball valves and butterfly valves, the worm gear reducer series manufactured by our company can be adopted as supporting equipment.
Quantity :
Operating Conditions & Specifications
Power Supply: AC380V (+5%), Single‑phase: AC220V (+5%); Frequency: 50Hz (+1%); Ambient Temperature: -25°C ≤ Ta ≤ +70°C (Customizable for special temperature ranges); Ambient Relative Humidity: ≤95% (at 25°C);
Altitude: ≤1000m;
Basic Error for modulating electric actuator: ≤±1%; Stroke Control Repeatability Error for modulating electric actuator: ≤±1%; Protection Class: IP65 (IP67, IP68);

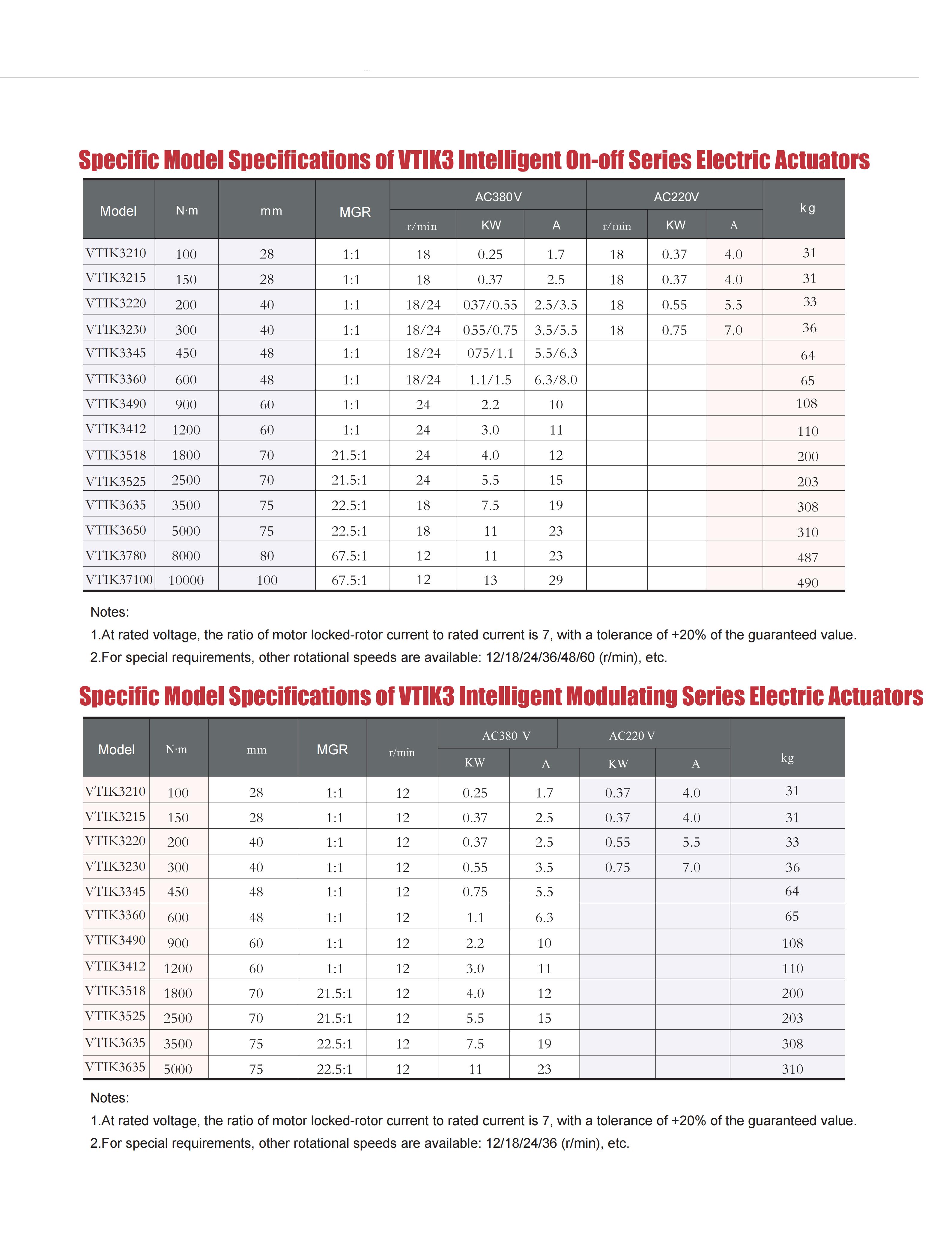

Explosion‑proof Mark for explosion‑proof electric actuator: Ex d IIB T4 Gb; See table for model specifications of the electric actuator; Products with special requirements for the above parameters of the electric actuator can be ordered separately.
Altitude: ≤1000m;
Basic Error for modulating electric actuator: ≤±1%; Stroke Control Repeatability Error for modulating electric actuator: ≤±1%; Protection Class: IP65 (IP67, IP68);
Explosion‑proof Mark for explosion‑proof electric actuator: Ex d IIB T4 Gb; See table for model specifications of the electric actuator; Products with special requirements for the above parameters of the electric actuator can be ordered separately.
Features & Applications
This explosion‑proof electric actuator is equipped with self‑protection and explosion‑proof functions. The reliable performance of this electric actuator makes it well‑received by users. This electric actuator is widely used in industries including petroleum, chemical, power, metallurgy, papermaking and water treatment.
For applications requiring actuation of quarter‑turn valves (such as ball valves and butterfly valves), select our dedicated quarter‑turn electric actuator. This quarter‑turn electric actuator delivers stable torque output for rotary valve operation. The modulating electric actuator variant of this electric actuator is available for precise regulating working conditions, and the explosion‑proof electric actuator can adapt to hazardous explosive environments.
For applications requiring actuation of quarter‑turn valves (such as ball valves and butterfly valves), select our dedicated quarter‑turn electric actuator. This quarter‑turn electric actuator delivers stable torque output for rotary valve operation. The modulating electric actuator variant of this electric actuator is available for precise regulating working conditions, and the explosion‑proof electric actuator can adapt to hazardous explosive environments.
