Model No: VTEM series
Multi-Turn Electric Actuator IP67 IP68 as Options
Available torque range from 60N. M to 3000N.m.
Available speed range from 18rpm to 144rpm.
Ambient Temperature： -30℃-70℃(-40℃-70℃ as option)
Cable entries ： 2XNPT 3/4 1XNPT 3/4（reserve）
Enclosure Protection： IP67 as standard IP68 as option
VTEM series direct output torque range is 100N.m-3000N.m, output speed range is 18rpm-144rpm, according to different speed and different speed ratio, with electric worm gear box can be converted into more and more large torque requirements
Available speed range from 18rpm to 144rpm.
Ambient Temperature： -30℃-70℃(-40℃-70℃ as option)
Cable entries ： 2XNPT 3/4 1XNPT 3/4（reserve）
Enclosure Protection： IP67 as standard IP68 as option
VTEM series direct output torque range is 100N.m-3000N.m, output speed range is 18rpm-144rpm, according to different speed and different speed ratio, with electric worm gear box can be converted into more and more large torque requirements
Quantity :
The VTEM series can produce a variety of models according to user needs, such as basic, intelligent, bus, intelligent split and other forms, which are safe, stable and reliable to meet different application scenarios in various fields.
VTEM series multi-turn electric actuators can be used not only with straight-stroke valves such as regulating valves, venting valves, and stop valves, but also with quarter turn valves such as butterfly valves, ball valves, and plug valves after installing a part-turn worm gear box.
Multi-Turn Electric Actuator Specifications:
Available torque range from 60N. M to 3000N.m.
Available speed range from 18rpm to 144rpm.
Ambient Temperature： -30℃-70℃(-40℃-70℃ as option)
Cable entries ： 2XNPT 3/4 1XNPT 3/4（reserve）
Available speed range from 18rpm to 144rpm.
Ambient Temperature： -30℃-70℃(-40℃-70℃ as option)
Cable entries ： 2XNPT 3/4 1XNPT 3/4（reserve）
Designs and controls with basic,intelligent,fieldbus and separated control box to select.
Multi Turn Electric Valve Actuator Enclosure Protection Grade
IP67 enclosure protection as standard, IP68, BT4/BT6, CT4/CT6 as options.
Multi Turn Electric Actuators Applications
Suitable for ball valve, butterfly valve, plug valve, gate valve, globe valve.

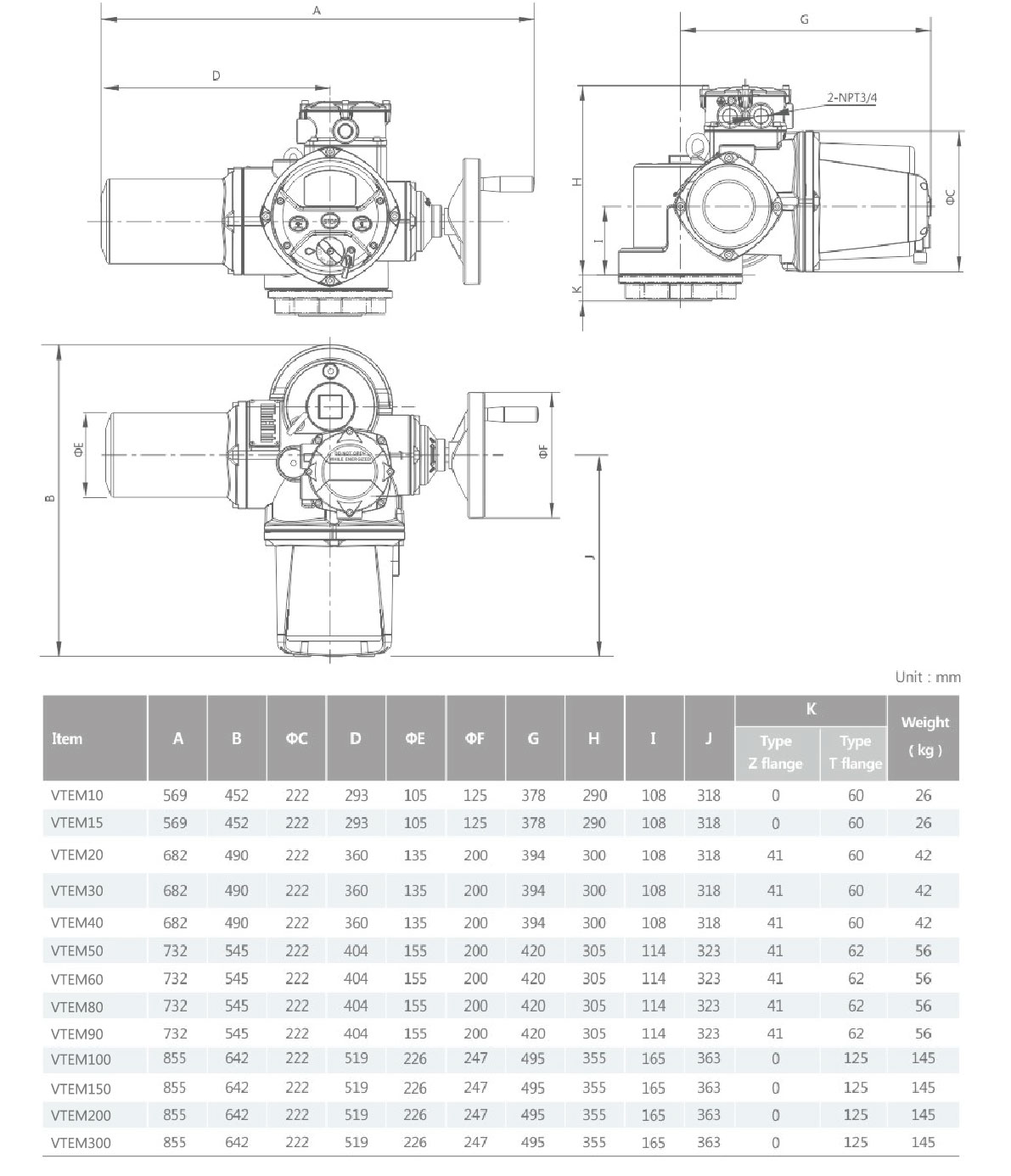

Overall Dimenions of VTEM Series Multi-turn Electric Actuators(lntelligent Type)

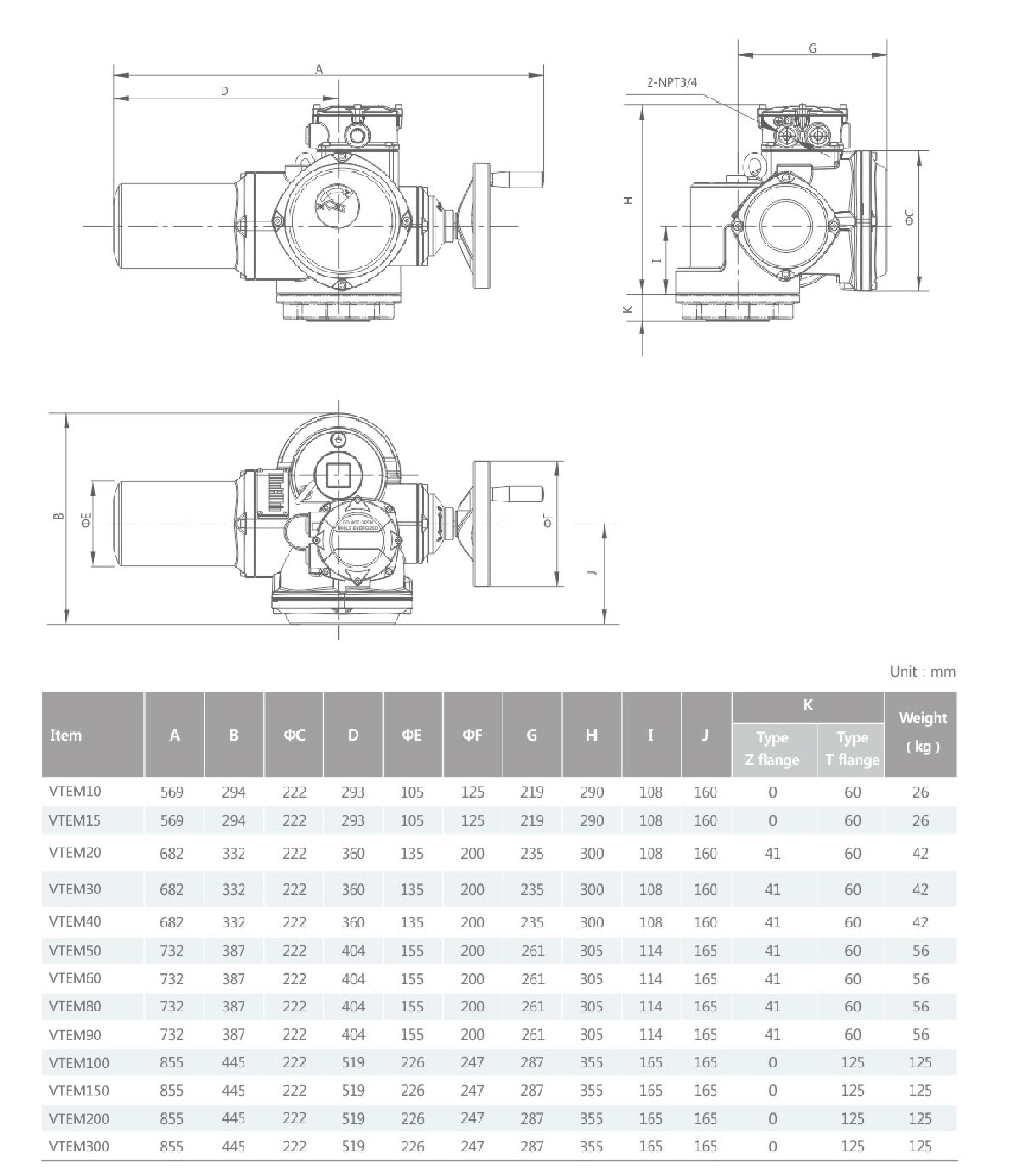

Overall Dimenions of VTEM Series Multi-turn Electric Actuators(lntelligent Type)
Overall Dimenions of VTEM Series Multi-turn Electric Actuators(lntelligent Type)
