Model No: VTB 2
Ultra-Fast Acting Pneumatic Actuator within 1sec with various accssories
Stroke: 90°
Temperature Range:
Standard: -20~80°C(-4°F to 176°F)
High: -20~+150°C(-4'F to 302°F)
Low: -40~+80'C(-40'F to 176°F)Ultra Low:-60~+80°C(-76'F to 176°F)
Type selection: Single acting
Air supply: Minimum 4Bar/Psi, Maximum 6bar/Psi
Valen Tech has specifically engineered Quick-Closing single acting actuators with SIL3 certified integral high flow pneumatic quick exhaust dump valve to achieve 1 second, avoiding damages to valve drive train.
Temperature Range:
Standard: -20~80°C(-4°F to 176°F)
High: -20~+150°C(-4'F to 302°F)
Low: -40~+80'C(-40'F to 176°F)Ultra Low:-60~+80°C(-76'F to 176°F)
Type selection: Single acting
Air supply: Minimum 4Bar/Psi, Maximum 6bar/Psi
Valen Tech has specifically engineered Quick-Closing single acting actuators with SIL3 certified integral high flow pneumatic quick exhaust dump valve to achieve 1 second, avoiding damages to valve drive train.
Quantity :
Fast & Ultra-Fast Acting Pneumatic Actuator Specifications

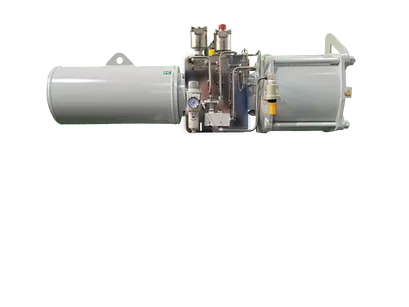

Fast&Ultra-Fast Acting pneumatic actuator is based on the Spring-return Fork Type Pneumatic Actuator to add flow regulating valve, quick exhaust valve and other accessories in the pneumatic system of the actuator. When the actuator air failure , the spring is quickly reset to realize the emergency closing of the valve. Generally, the shutdown time is controlled within 1 second.
High Speed Pneumatic Actuator Technical Parameters:
Stroke: 90°
Temperature Range:
Standard: -20~80°C(-4°F to 176°F)
High:-20~+150°C(-4'F to 302°F)
Low:-40~+80'C(-40'F to 176°F)Ultra Low:-60~+80°C(-76'F to 176°F)
Type selection: Single acting
Air supply: Minimum 4Bar/Psi, Maximum 6bar/Psi
Temperature Range:
Standard: -20~80°C(-4°F to 176°F)
High:-20~+150°C(-4'F to 302°F)
Low:-40~+80'C(-40'F to 176°F)Ultra Low:-60~+80°C(-76'F to 176°F)
Type selection: Single acting
Air supply: Minimum 4Bar/Psi, Maximum 6bar/Psi
Accessries Solution: Filter/ Regulater/Gauge, Solenoid valves, Limit switch boxes, Positioners, Air Operated Valve, Handwheel,etc
Protection Function option: Weather proof, Corresion Resistance, Fire safety
Protection Function option: Weather proof, Corresion Resistance, Fire safety
Ultra Fast Pneumatic Actuator Application Industries:
Petroleum, Chemical lndustry, Chemical Fibe,Coal chemical,Coal Gasifcaion, Metalury,Steel, Long distance Pipeline and Transporaion Papermaking. lioh industry, environmental protection, Biology and Pharmaceutical
Fast Pneumatic Actuator Appliaciton
Valve automation for ball valve, butterfly valve, plug valve etc 90 degree valve
