Model No: VTA
Rack and Pinion Pneumatic Actuator
Complies with international specifications: EN15714.3, ISO 5211, DIN 3337, VDI/VDE 3845 and NAMUR standards.
Temperature: -20°C - 80°C (standard type)
Air source pressure: 5 bar (default)
Rack and Pinion actuators often represents the cheapest solution for rotary small dimension valves or valves that need a constant torque during the entire stroke.
Temperature: -20°C - 80°C (standard type)
Air source pressure: 5 bar (default)
Rack and Pinion actuators often represents the cheapest solution for rotary small dimension valves or valves that need a constant torque during the entire stroke.
Quantity :
Rack and Pinion actuators often represents the cheapest solution for rotary small dimension valves or valves that need a constant torque during the entire stroke.
Rack and Pinion Pneumatic Actuator Details
The VAT series pneumatic actuator is the latest rack and pinion type aluminum alloy actuator, which developed and designed using new technologies, materials, and processes.
The product has a compact structure, linear torque output, and connection dimensions that meets international standards. It can support direct installation of accessories.
The structure adopts an rotary stroke design, which is suitable for most types of ball valves, butterfly valves, and plug valves.
Pneumatic Rack and Pinion Rotary Actuators Applications
Widely used in industries such as petroleum, chemical, power, metallurgy,etc.
Pneumatic Rack and Pinion Actuator Parameters
Operating Environment Temperature
Standard type: -20℃ - 80℃
Low-temperature type: -40℃ - 80℃
Ultra-low-temperature type: -60℃ - 80℃
High-temperature type: -20℃ - 160℃
Low-temperature type: -40℃ - 80℃
Ultra-low-temperature type: -60℃ - 80℃
High-temperature type: -20℃ - 160℃
Air Source Pressure
3 bar, 4 bar, 5 bar, 6 bar, 10 bar

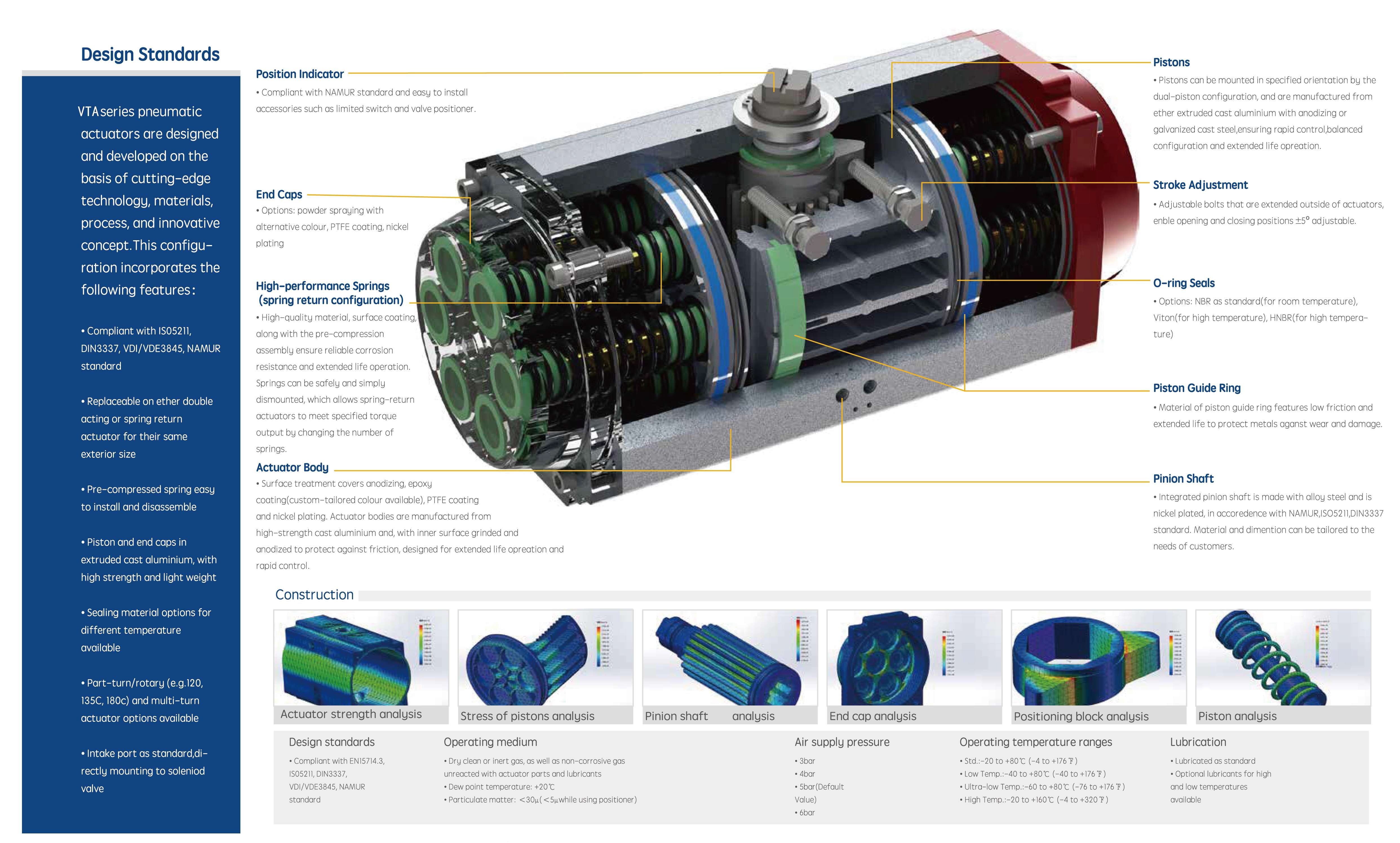

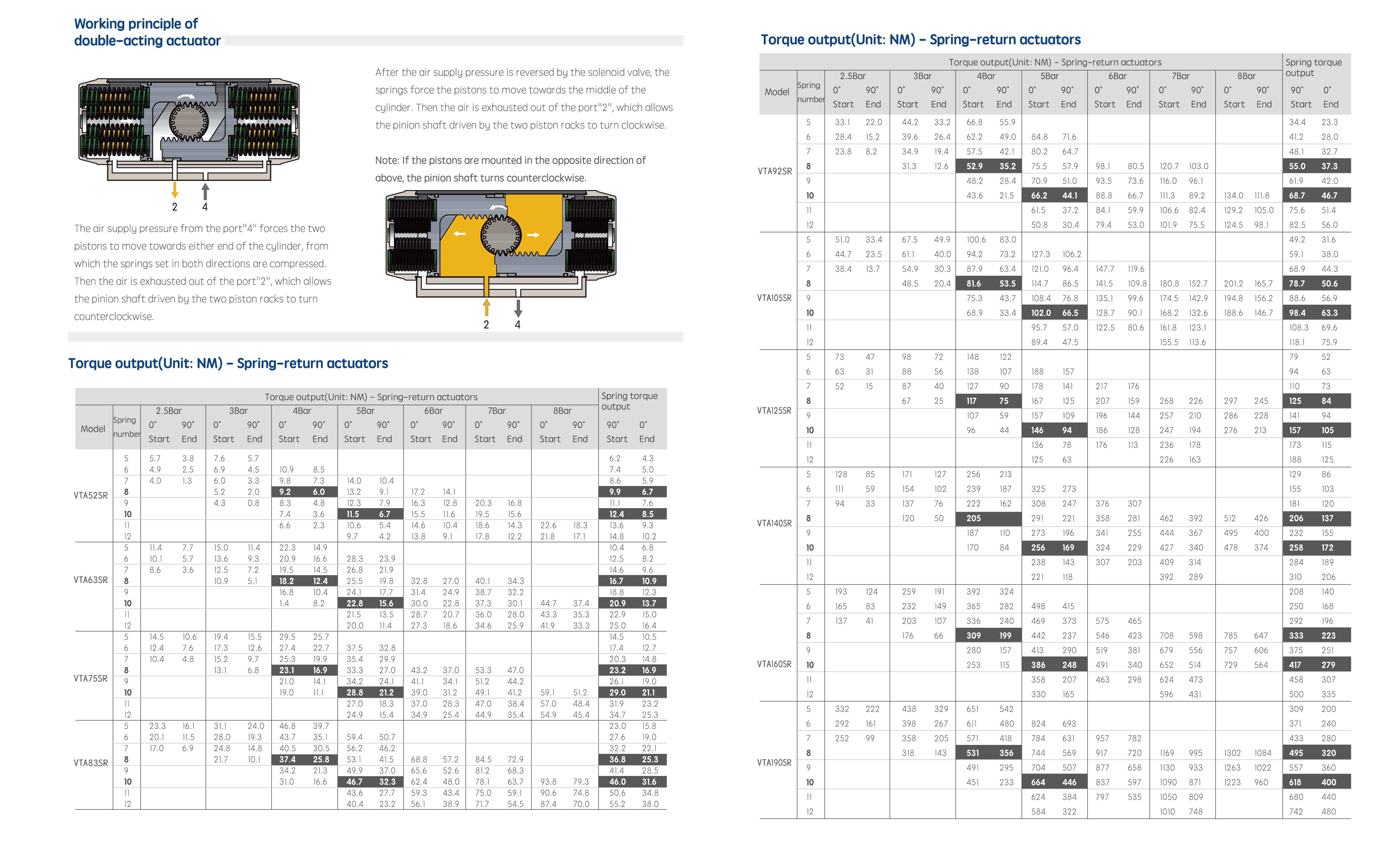

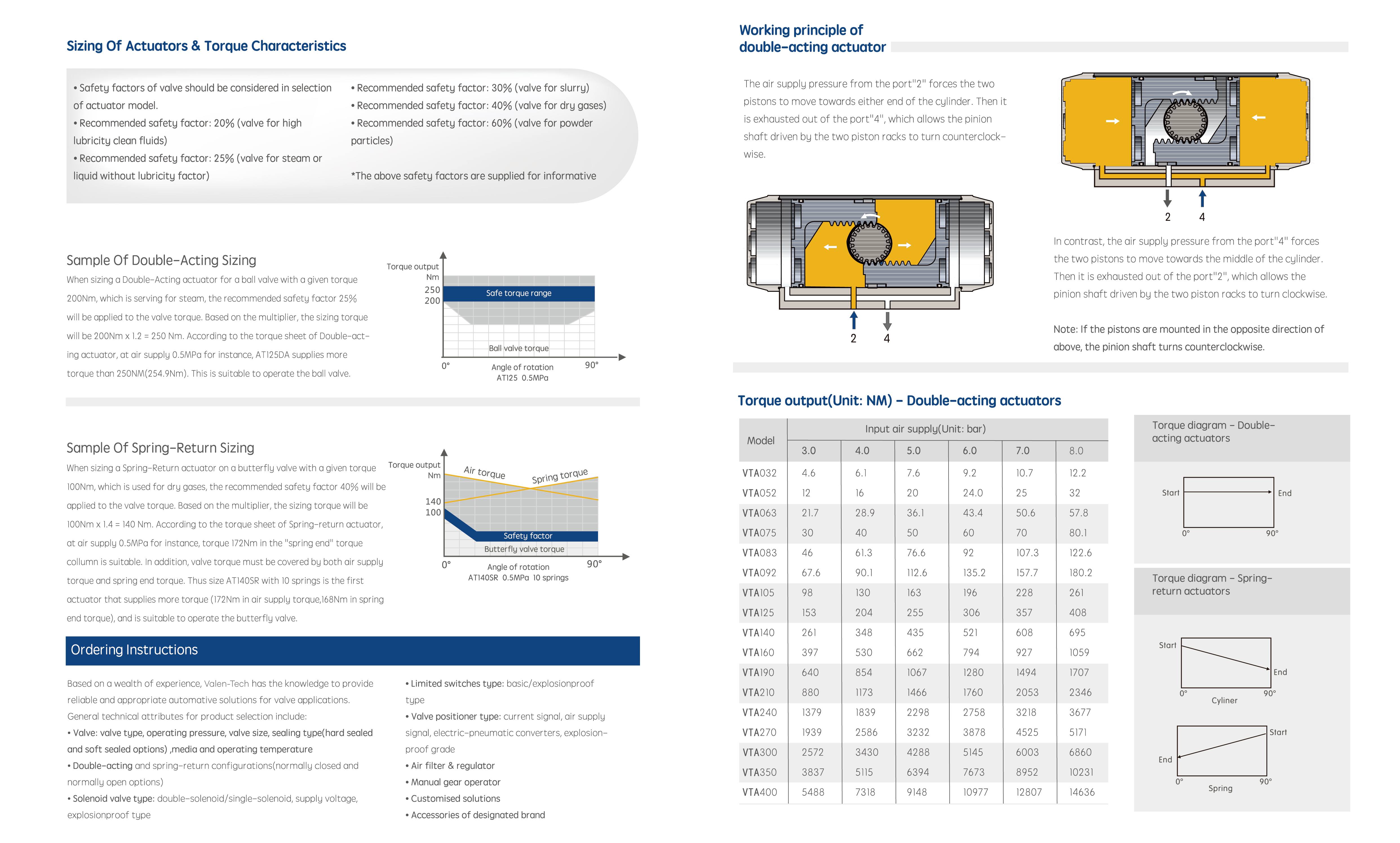

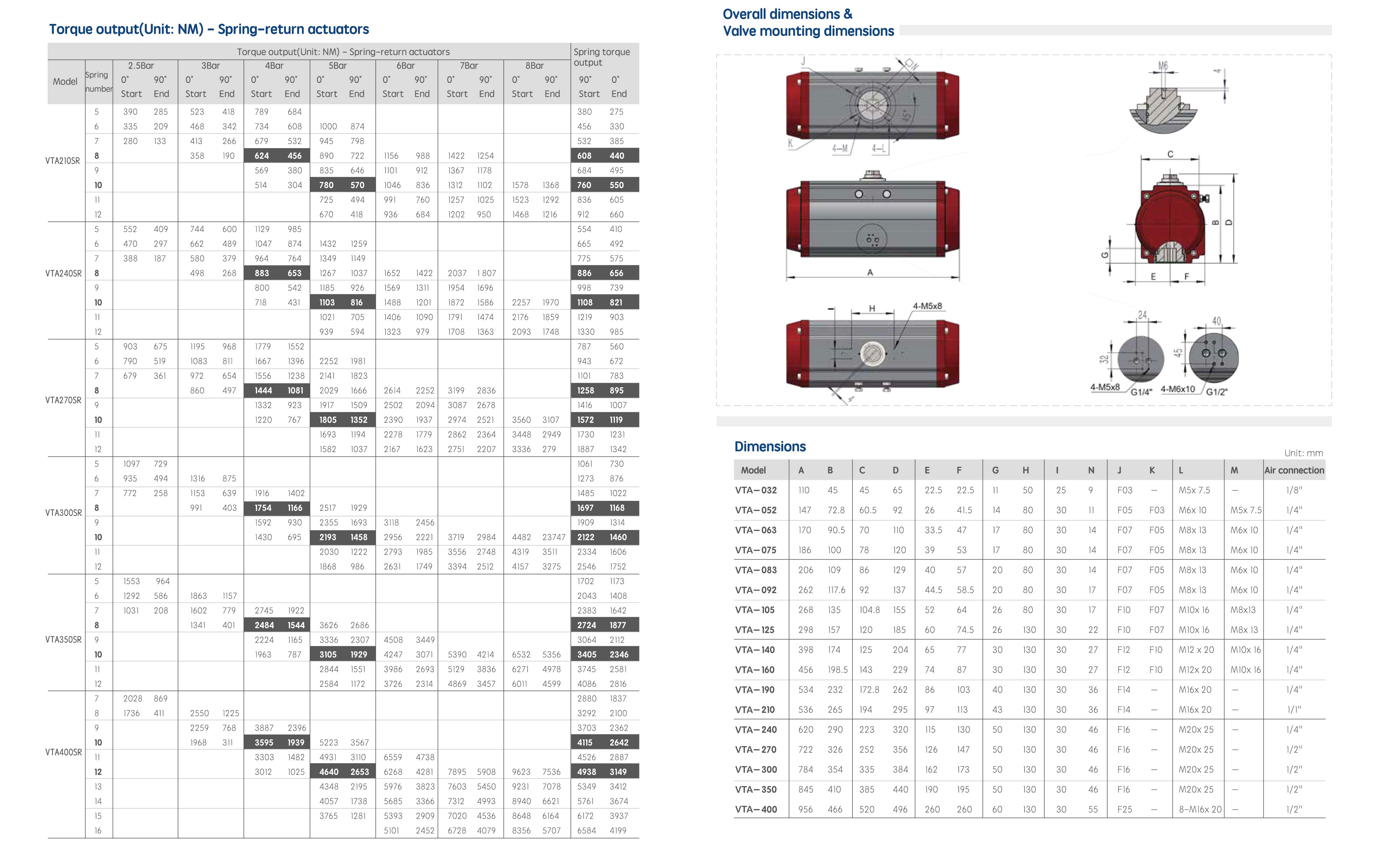

Sample Diagram of the Pneumatic Rack and Pinion Rotary Actuators
Instrutions for Ordering
Valve category, working pressure, specification, sealing form (hard sealing or soft sealing)
Medium in use and the humidity of the working environment:
Pneumatic actuator: double-acting type, single-acting type (normally closed or normally open)
Solenoid valve: double-solenoid-controlled solenoid valve, single-solenoid-controlled solenoid valve, operating voltage,
Whether it is explosion-proof;
Limit switch: ordinary, explosion-proof;
Positioner: pneumatic positioner, current signal, air pressure signal, electro-pneumatic converter, explosion-proof type
Medium in use and the humidity of the working environment:
Pneumatic actuator: double-acting type, single-acting type (normally closed or normally open)
Solenoid valve: double-solenoid-controlled solenoid valve, single-solenoid-controlled solenoid valve, operating voltage,
Whether it is explosion-proof;
Limit switch: ordinary, explosion-proof;
Positioner: pneumatic positioner, current signal, air pressure signal, electro-pneumatic converter, explosion-proof type
