Model No: VTB
Linear Pneumatic Actuator
Construction: Linear Action Spring Return/Double Acting
Material: Carbon Steel | Stainless Steel
Valve Application: On-Off | Modulating | HIPPS
Torque: 3.000 KN
Temperature Range: -29°C to +100°C (-20°F to +212°F), -60°C to be requested
The linear pneumatic actuator is a kind of equipment that converts the energy in the form of compressed air into linear motion, and realizes the telescopic movement of the cylinder by controlling the air supply and exhaust, which is widely used in industrial fields
Material: Carbon Steel | Stainless Steel
Valve Application: On-Off | Modulating | HIPPS
Torque: 3.000 KN
Temperature Range: -29°C to +100°C (-20°F to +212°F), -60°C to be requested
The linear pneumatic actuator is a kind of equipment that converts the energy in the form of compressed air into linear motion, and realizes the telescopic movement of the cylinder by controlling the air supply and exhaust, which is widely used in industrial fields
Quantity :
What is pneumatic linear actuator?
The linear pneumatic actuator is a kind of equipment that converts the energy in the form of compressed air into linear motion, and realizes the telescopic movement of the cylinder by controlling the air supply and exhaust, which is widely used in industrial fields

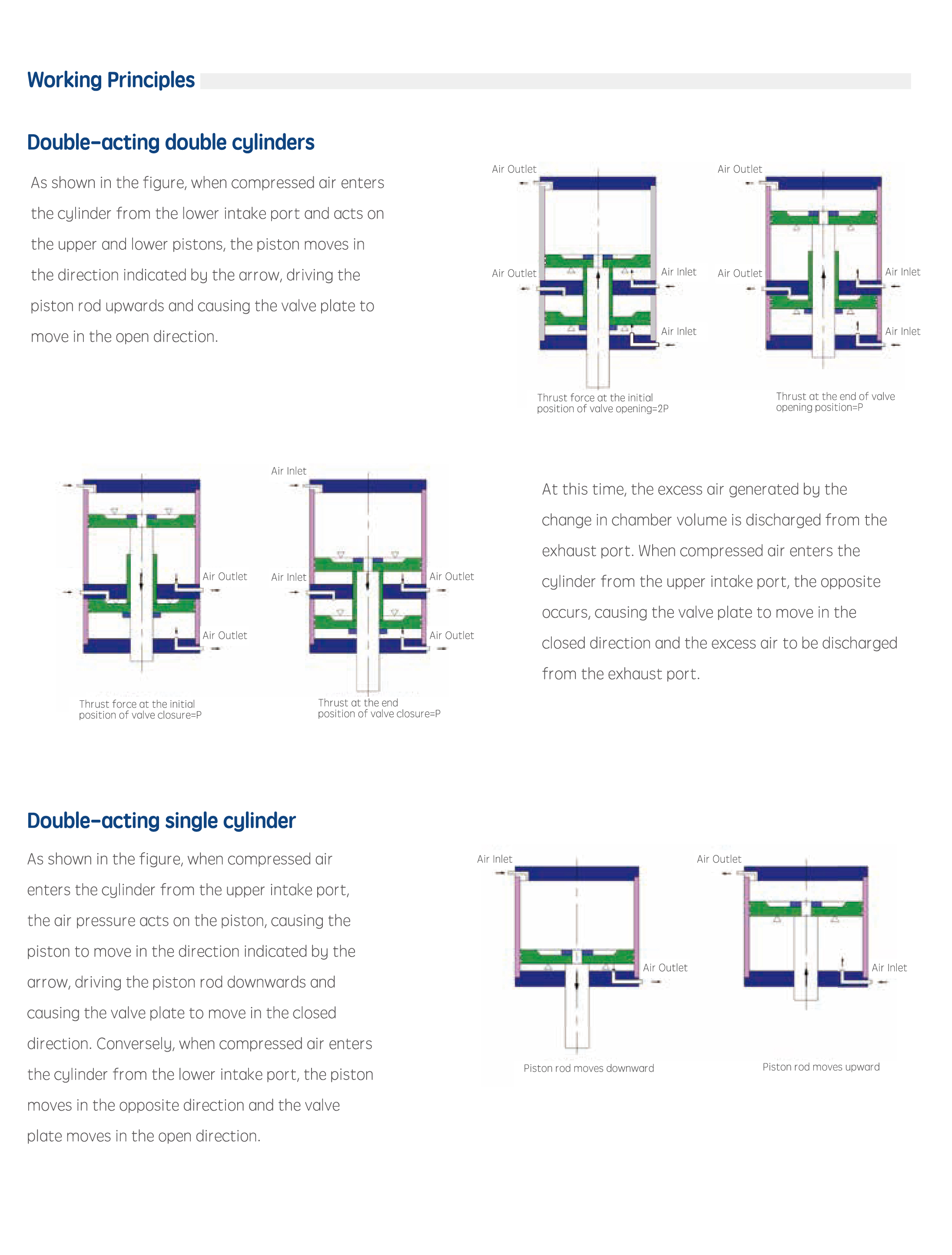

Linear Pneumatic Actuator Working principle
The linear pneumatic actuator consists of a cylinder, a piston, a seal and a guide. Through the control valve, the compressed air is sent to the side of the cylinder, increasing the pressure to promote the piston movement; Then exhaust, reduce the pressure on the other side, form a pressure difference, so that the piston in the cylinder reciprocating movement, so as to achieve linear movement
High Speed Pneumatic Linear Actuator Technical parameters
Construction: Linear Action Spring Return/Double Acting
Material:Carbon Steel | Stainless Steel
Valve Application: On-Off | Modulating | HIPPS
Torque:3.000 KN
Temperature Range: -29°C to +100°C (-20°F to +212°F), -60°C to be requested
Valve Application: On-Off | Modulating | HIPPS
Torque:3.000 KN
Temperature Range: -29°C to +100°C (-20°F to +212°F), -60°C to be requested
Valen Tech Linear Pneumatic Actuators have optimal maximum pressure ratings which allow for a high range of output forces
Applications of Linear Pneumatic Actuators
It is suitable for ball valves, butterfly valves, plug valves, gate valves and globe valves.

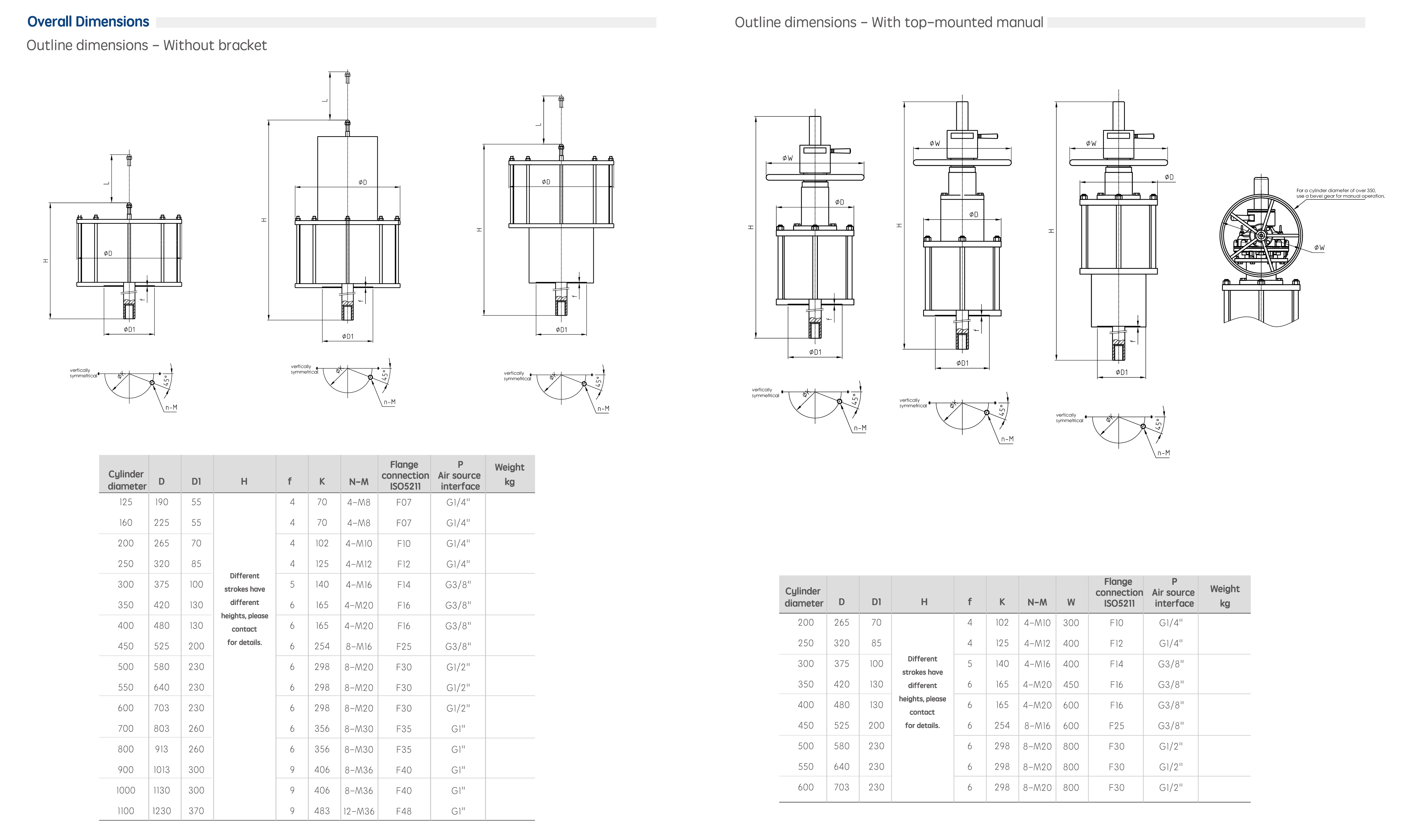

Sample Diagam of the Linear Pneumatic Actuator
